Molding System

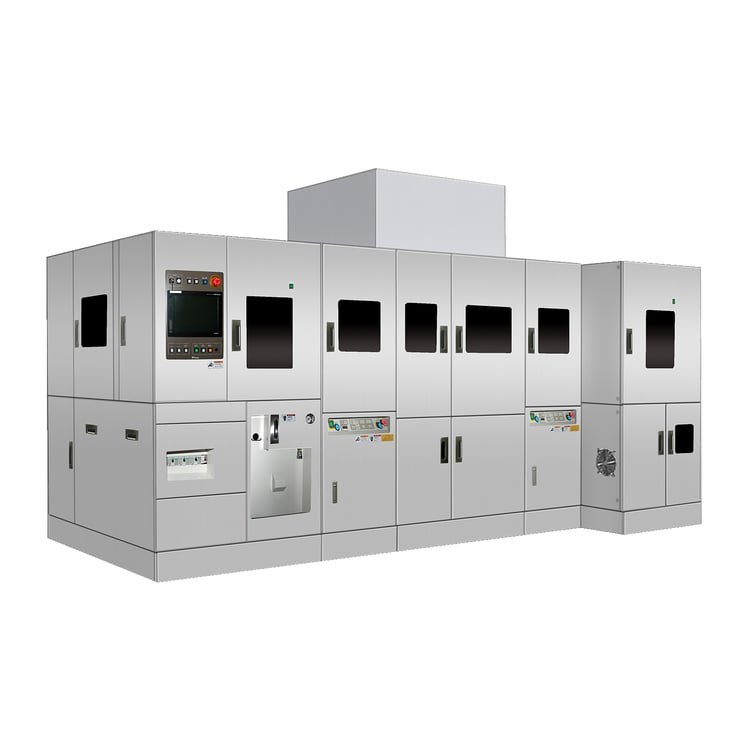

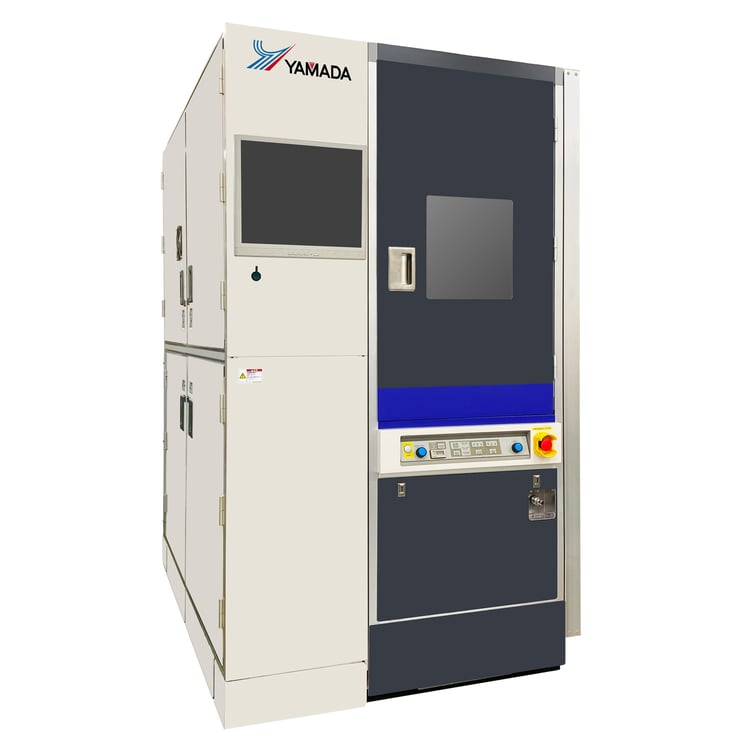

GTM-X LTM
【 Transfer Molding 】
Liquid Transfer Encapsulation System

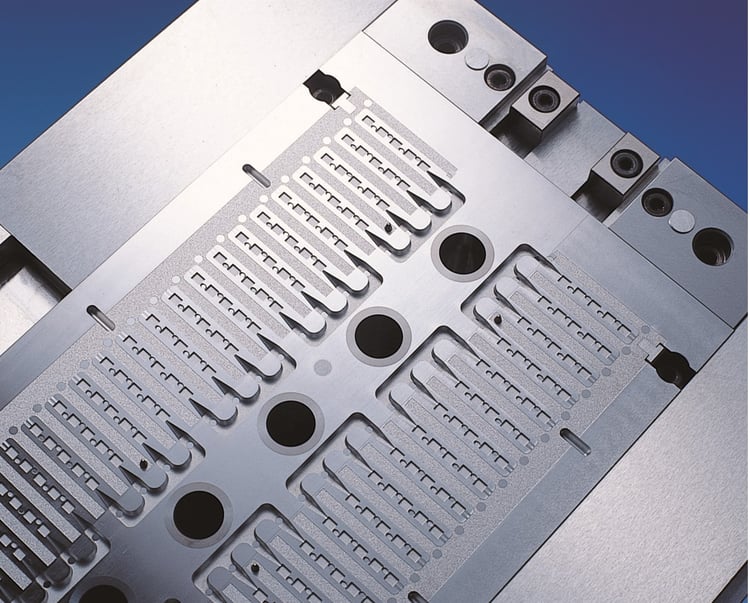

Molds selling agency
Overview
- Transfer molding system equipped with a liquid resin dispenser.
- Direct dispensing system that dispenses liquid resin directly from the nozzle to the mold pot.
- The system can be used for large substrates for large module molding.
- A syringe filled with liquid resin is used to supply resin (premix type).
Features
- Suitable for LED products (lens molding, reflector molding) using low-viscosity liquid resin such as silicone resin.
- Capable of molding 100x300mm substrates.
- Resin can be supplied to the machine at once by a syringe unit that has syringes aligned with the number of mold pots.
- The number of presses can be selected according to the production volume (one or two).
- A hybrid system that supports both liquid resin and tablet resin is also available as an option, which includes a tablet resin feeding mechanism.
Product Specifications
| ITEM | DETAILS |
|---|
| Utility | Power supply | 3-phase AC200/220V 50/60Hz | |
| Compression air | 0.5MPa, 350L/min(ANR)以上 | ||
| Applicable work size | 2 frames/shot/press | ||
| Handling time | Approx. 40sec~ Excl. Tr. Time, Cure time, other function | ||
| Press type | 120 ton / 170 ton | ||
| Clamping force | 196~1,176kN (120ton) / 278 ~ 1,666kN (170ton) | ||
| Transfer force | 4.9～29.4kN (120ton) / 4.9~41.2kN (170ton) | ||
| LTM-170L Machine size *1 (excluding the signal pole) | 1 press / (W)4,425×(D)2,540×(H)2,370mm | ||
| 2 press / (W)5,105×(D)2,540×(H)2,370mm | |||
| 170ton Machine weight *1 (including the molds) | Approx. 9,470kg [1 press] ~ 13,170kg [2 press] | ||
| Applicable strip sizes | Width | 35 - 100mm | |
| Length | 150 - 300mm | ||
| Compound | Liquid compound | ||
| Compound dispensing | Pre-Mix type | ||
| Loader / Unloader magazine | Type | Slotted magazine | |
| Loader capacity | 440mm | ||
| Width | 45～110mm | ||
| Length | 160～305mm | ||
| Hight | 80～175mm | ||
*1) These are the dimensions of slot magazine off-loading.
*Specifications may be changed for improvements without any notice.
