Final Inspection Taping Equipment
PXT-series

Quartz device manufacturing

Inspection

selling agency

PFA Corporation

Overview

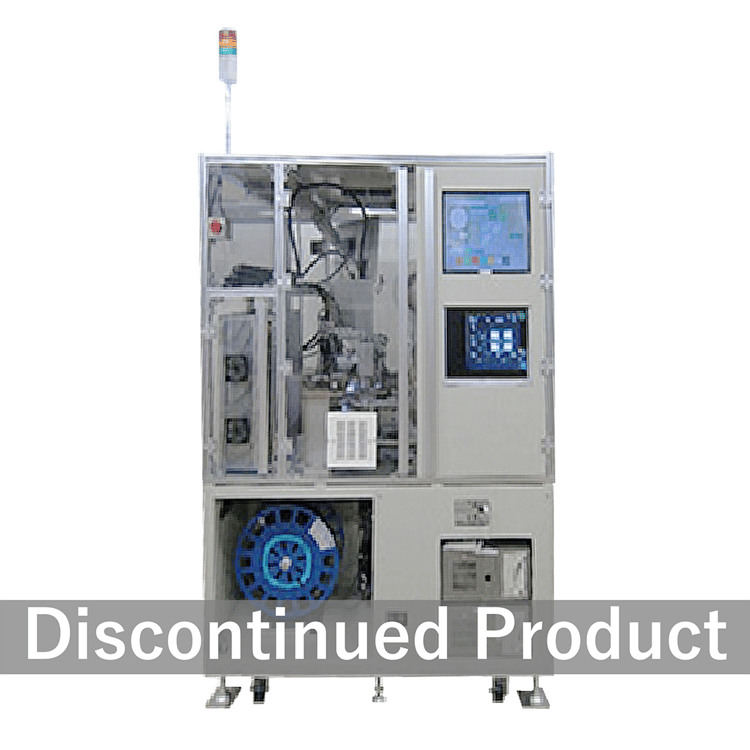

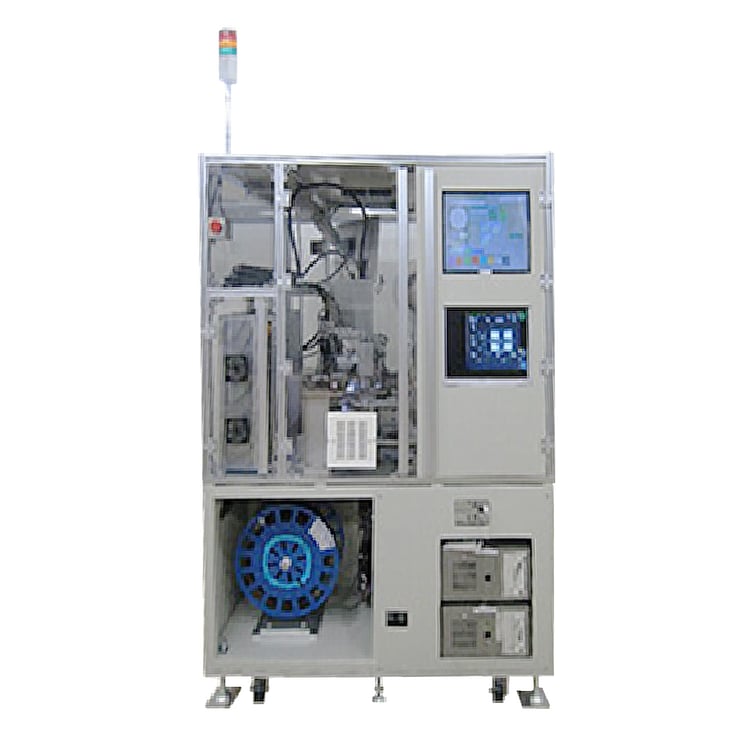

  • This is a device that performs normal temperature inspection, printing inspection, and taping of SMD crystal oscillators at high speed.
  • Especially for small workpieces, stable inspection, transportation and taping are realized.

Features

  • Final inspection and taping equipment compatible with small SMD crystal resonators.
  • As the final inspection of the SMD type crystal unit, the frequency and resistance value are inspected to determine the non-defective product and taping is performed.
  • Stable inspection and transport are possible even for small worksize.
  • As an option, you can add a laser printing function.
  • As an option, you can add a gross leak check.

Usage examples

  • Inspection and taping equipment compatible with small SMD crystal resonators.
  • Frequency inspection and resistance value of SMD type crystal resonator are measured for pass/fail judgment.
  • Laser printing can be done by adding an option.
  • Only non-defective products are taped

Optional

  • Optionally : Add to laser printing.

Product Specifications

ITEMDETAILS
Target workpieceSMD crystal, 2016
Target workpiece size3.2×2.5～1.0×0.8(㎜)
Inspection itemsFrequency, resistance, drive level inspection, insulation inspection
Work supplyParts feeder
Work storageTaping (defective product: BOX)
External DimensionsStandard-specification: W1200×D1100×H1500 mm (excluding protruding objects such as patlite)
OptionLaser printing

*Configuration and specifications of this machine are subject to partial modification without prior notice.
