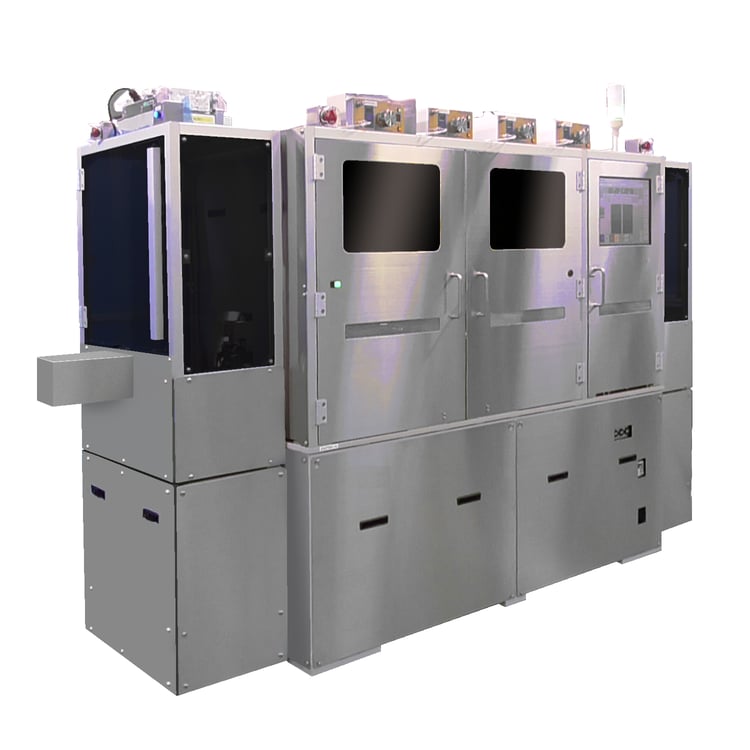

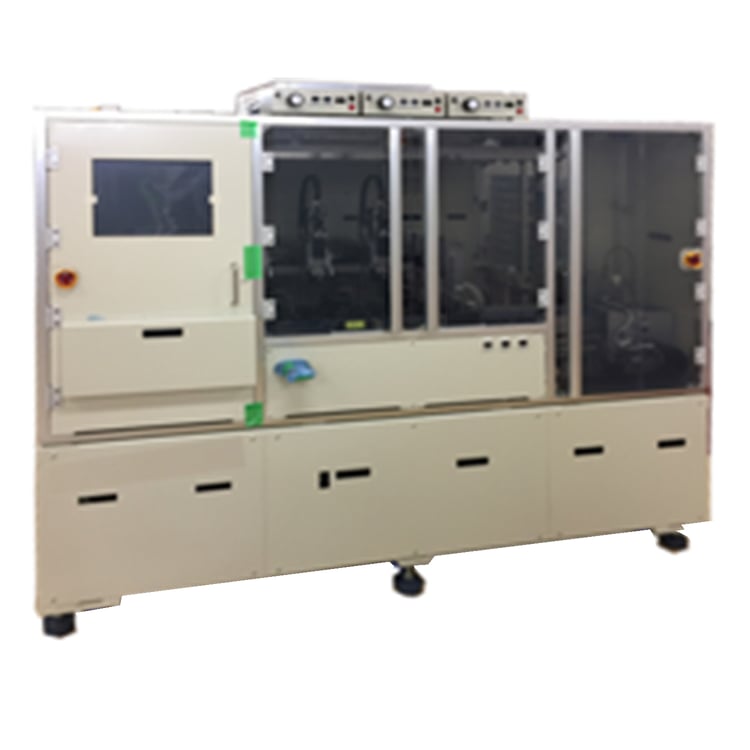

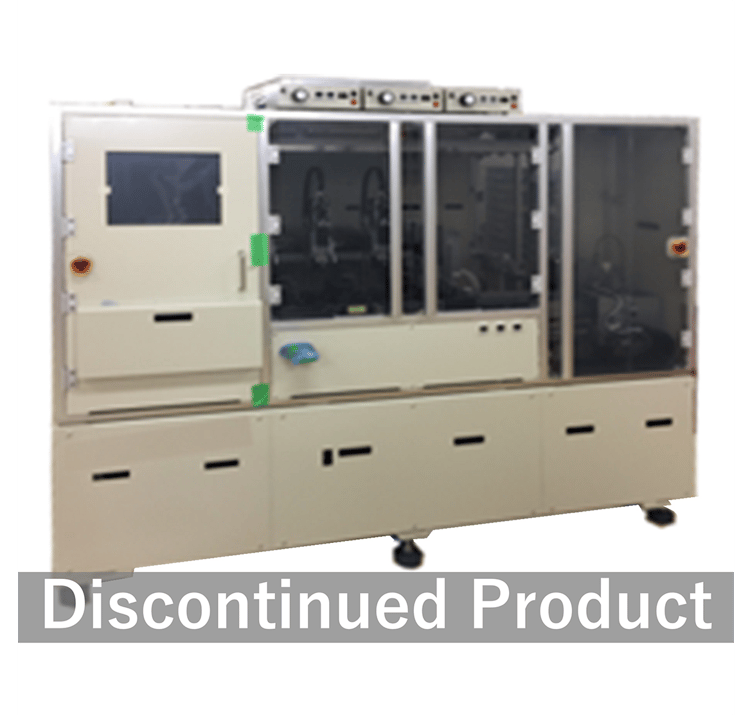

Side fill dispenser
CPD-NT100

Camera module manufacturing

Dispenser

selling agency

PFA Corporation

Overview

  • This machine is a fully automatic device to inspect the coating condition by drawing and applying Ag paste between the stiffener bonded to the camera module and the camera module housing.
  • Since the position and height of the stiffener are measured by image processing, application can be performed with the optimum gap.

Features

  • Supports high speed with 3 stages and 3 heads
  • It is possible to recognize the workpiece as an image and control the needle tip position accurately. Controls the XYZΘ axes.

Usage examples

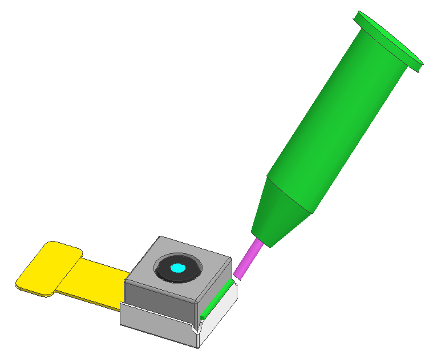

This equipment is ideal for applying reinforcing resin, etc. from the side of the module.

CPD-NT100使用例

Product Specifications

ITEMDETAILS
Target workpieceCamera Module
Tray sizeMax316×136mm
DispenserAir pulse dispenser × 3 sets
Imaging featureAlignment top camera × 3 sets, Side camera × 3 sets
※For image alignment and coating inspection
Engineering data managementAn optional production data management system using a LAN connection is available.

*Configuration and specifications of this machine are subject to partial modification without prior notice.
