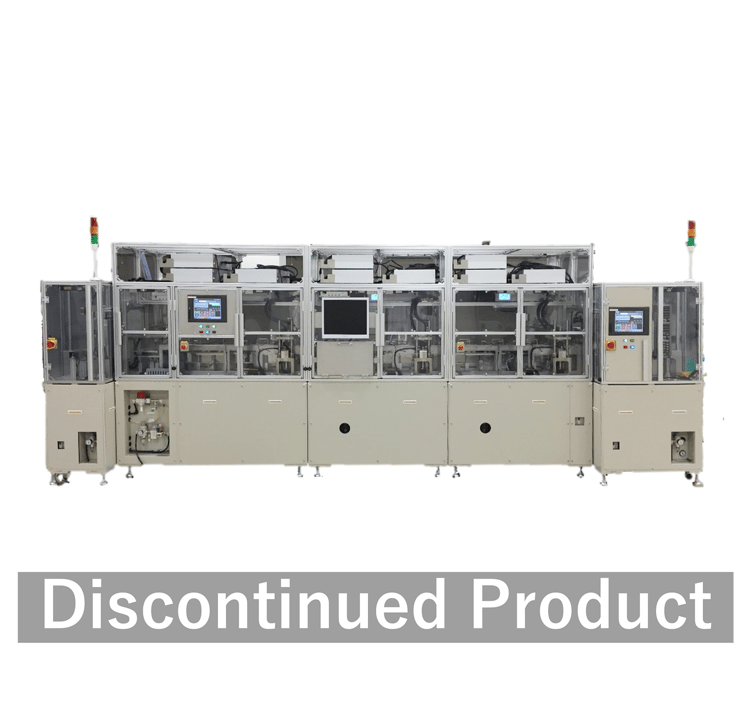

Thermal Inspection Equipment for Pressure Sensors
TPT-1000

Other Manufacturing

Temperature inspection equipment for other manufacturing and pressure sensors

selling agency

PFA Corporation

Overview

This unit applies temperature and pressure to the pressure sensor for calibration and characteristic inspection.

Features

  • High productivity is achieved by continuously transporting exclusive use carriers with multiple workpieces arranged, and by applying temperature, pressure, and measurement.
  • Optimization of the work pressure control section realizes high accuracy and high response.
  • The dedicated carrier is directly heated and cooled at the temperature control stage, which saves space and energy compared to a gas-phase type temperature control system.

Usage examples

Product Specifications

ITEMDETAILS
ModelTPT-1000
Tact2.5 sec/pc.
Temperature point-35℃、25℃、120℃
(*) Setting temperature can be customized
Temperature control systemLow-temperature section: Peltier or refrigerator
High-temperature section: Adopts a soaking plate system using a heater to achieve a sealed chamber structure
Set pressure10kPa to 0.5MPa (absolute)
Static constant pressure±０．０１kＰａ
Machine sizeW4990×D1576×H1557 mm
Machine weightApprox. 2700 kgkg
Options and Special Functions・With lead cut
・With visual inspection
・With classification sorting function

*Configuration and specifications of this machine are subject to partial modification without prior notice.

Installation dimensions
