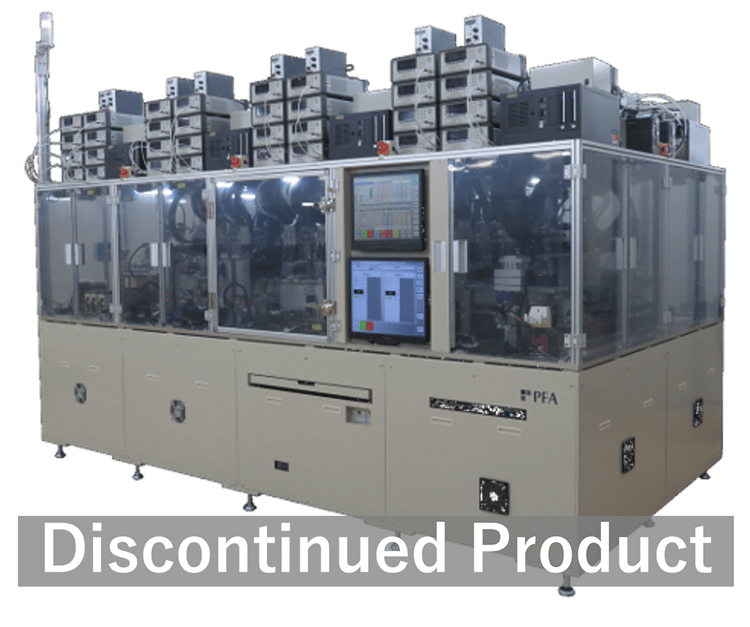

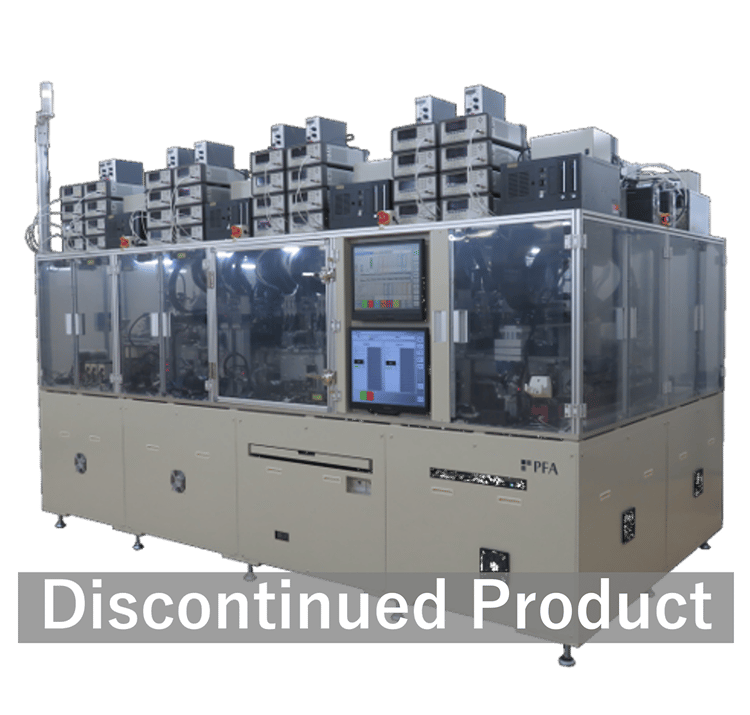

TCXO temperature test device
PTTA-T16X
Crystal device manufacturing
Temperature Test selling agency
Overview
- This device measures the temperature characteristics of a TCXO (temperature-compensated crystal oscillator) and writes adjustment data to an IC.
- Takt time: This is a high-speed device that achieves 0.85 sec.
Features
- By temperature control of the Peltier temperature control plate, for a wide range of temperatures on the low temperature side (-40°C) ~ high temperature side (120°C),
Uniform temperature distribution enables the production of high-precision products. - The workpiece is supplied and arranged in a dedicated carrier, and the carrier is shuttled onto the temperature plate.
- The measurement head side is also controlled by Peltier temperature, reducing temperature changes during probe contact.
- The standard temperature bath is 16 tanks, but it is possible to increase the number of temperature baths. (Consult separately)
- Compared to the conventional temperature chamber in-line type, it has been significantly reduced.
Usage examples
- This device measures the temperature characteristics of a TCXO (temperature-compensated crystal oscillator) and writes adjustment data to an IC.
- Temperature control of the Peltier temperature control plate realizes uniform temperature distribution over a wide range of temperatures on the low temperature side (-40°C) ~ high temperature side (120°C), enabling the production of highly accurate products.
- Since the dedicated carrier is directly cooled and heated on the temperature control plate, SoakTime is not required, making it a device with fast tact.
- Takt time: This is a high-speed device that achieves 0.85 sec.
- The workpiece is supplied and arranged in a dedicated carrier, and the carrier is shuttled onto the temperature plate.
- Dedicated carriers: About 300 brackets are automatically circulated within the equipment.
- The measurement head side is also adjusted at Peltier temperature to reduce the escape of heat during stylus contact.
- The standard temperature bath is 16 tanks, but it is possible to increase the number of temperature baths. (Consult separately)
Product Specifications
| ITEM | DETAILS |
|---|---|
| Target workpiece | TCXO (Temperature Compensated Crystal Oscillator) |
| Target workpiece size | 1612~3225(Standard size) * Depends on the size, position, and shape of the terminal * Other than standard sizes are also available (consult separately) |
| Temperature range | ₋40℃～+120℃ |
| Temperature control | Peltier method (for Peltier control, a chiller is used) |
| Device tact | 0.85sec |
| Work career | Aluminum plate carrier (120mm×15mm×2mm) Number of workpieces mounted on one carrier: 64 (3225 or less) Approximately 300 carriers are used for one device and one type |
| Carrier Conveyance | Shuttle transport on the temperature-controlled stage |
| Measuring head | Peltierwith temperature control |
| Drive source | Input Power Supply |
| Physical Dimensions and Mass | L3500×W2000×H1700 4000kg planned |
※ Configuration and specifications of this machine are subject to partial modification without prior notice.
