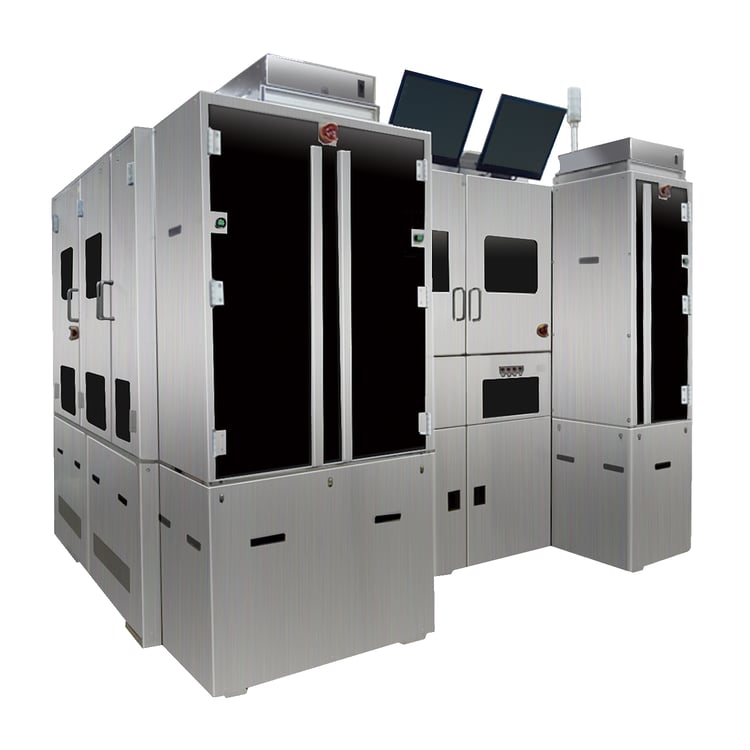

Active alignment equipment
A300-SUPER

Camera module manufacturing

Active Alignment

selling agency

PFA Corporation

Overview

  • This equipment actively adjusts (adjusts 6 axes) the lens holder (VCM, etc.) with respect to the image sensor and assembles it.
  • The precise alignment of focus, tilt, and XY center makes it ideal for producing high-quality camera modules.
  • This device is fully automated for UV adhesive application, active alignment (AA), and UV temporary curing.
  • UPHs are improved by 30% compared to HM-A200 of conventional machines.

Features

  • Operation is available in PreAA mode.
  • The FOV angle of the focus scanning unit can be varied.
  • The through focus data of the finished product can be measured.
  • 1 Head dispense simplifies setup and reduces the time required to set up dispense conditions.
  • The optical unit is small.
  • HEPA filters provide a cleaner environment.
  • The SFR measurement method is used for image measurement.

Installation dimensions
